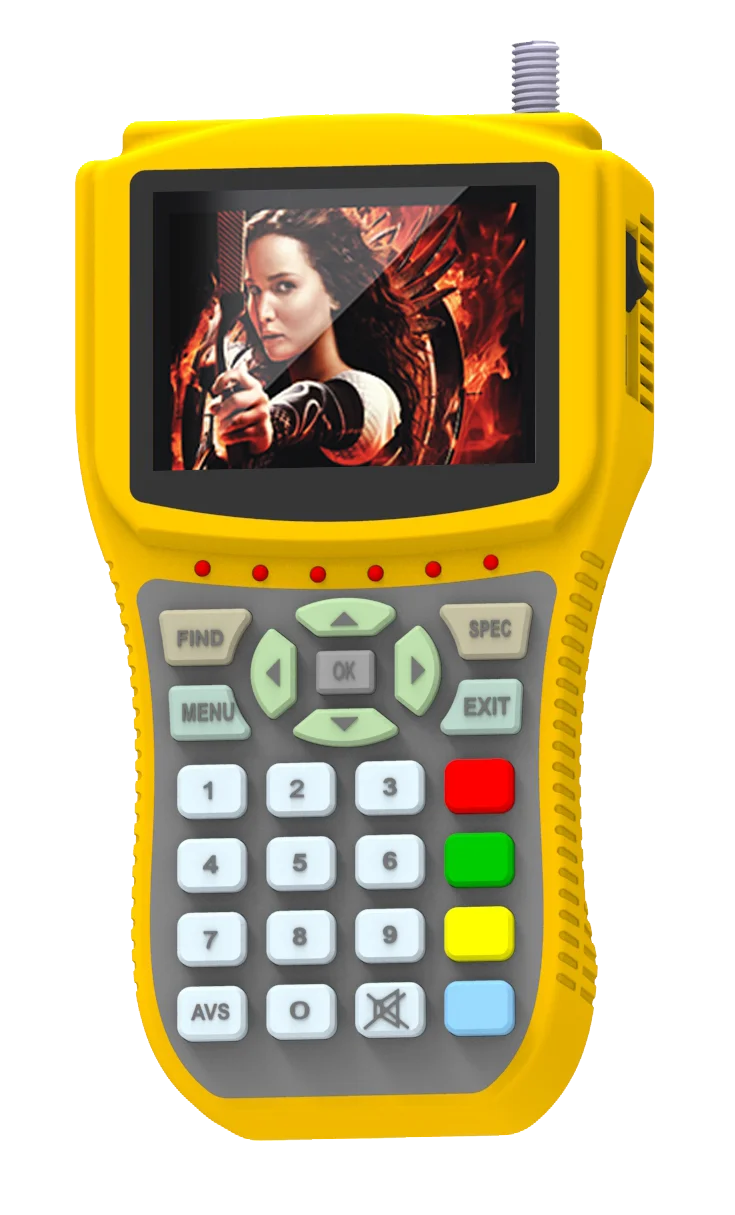

Gecen HD DVB-S2 Digital Satellite Finder Meter Support AHD Camera Model SF-3600

FOB Reference Price:Get Latest Price
$65.00 - $70.00 / Pieces | 50 Piece/Pieces welcome sample order (Min. Order)
Plug Type:
EU Plug
Color:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
G-sat
Model Number:
SF-3600
FTA(Free To Air):
Yes
Type:
Digital
High Definition:
Yes
Spectrum analyzer:
yes
unicable lnb:
support
Color:
Yellow
flashlight:
support
Signal buzzer:
Built-in
Control signal:
0/22KHZ, 13/18V
Rechargeable battery:
support
DVB-S/S2:
Support
DC Power adpater:
support
AHD Camera:
Support
Supply Ability
Supply Ability:
5000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
40PCS/Carton
Port
Zhuhai port
Lead Time :
Available stock



Gecen HD DVB-S2 Digital Satellite Finder Meter Support AHD Camera Model SF-3600

Product Description



System Resources

Main Processor

600M Hz based CPU

Flash Memory

64M Bits

DDR2 SDRAM

512M Bits

Tuner/Front-end

Tuner Type

DVB-S/DVB-S2

Input Connector

F-type

Frequency Range

950MHz~2150MHz

Signal Level

-65~-25dBm

Impedance

75Ω

LNB Power & Polarization

Vertical:+13V

Horizontal:+18V

Current:Max.500mA

Overload Protection

DiSEqC Control

Version 1.0/1.1/1.2

22KHz Tone

Frequency:22±1KHz

Demodulation

QPSK,8PSK,16APSK,32APSK

Symbol Rate

1~60Msps

Power Supply

Input Voltage Adapter

Free Voltage (100~240V  AC  50/60Hz)

Power Consumption

10W MAX

Power charger output

14V DC 2A

Battery

12.6V/2200mAh

Battery charging time

6H

Battery standard discharging time

3-4H

Audio output

Built-in Loudspeaker

output

HDMI  AV(Φ3.5mm)

Input

CVBS  AHD   USB

Transport Stream

MPEG-2/4,H.264

Physical Specification

LCD Display

3.5 inch

Size[W*H*D]

185 x105x 44(mm)

Net Weight

0.5Kg

Operating Temperature

0 ~ + 45

Storage Temperature

-10 ~ + 70





Packaging & Shipping

Packing

PCS / Carton:

Carton Size:

Packaging example:

Shipping:

For small quantity, shipping by DHL / Fedex under buyer's account

For larger quantity, shipping by sea under buyer's account

Shipping cost is negotiable.
